Part Number: 67/560 / Vendor ID Number: 27 / Custom:
Running Man Green Exit Sign; 120/347V; 2HR backup; Single/Dual Face; Universal Mounting; Wet

Running Man Green Exit Sign; 120/347V; 2HR backup; Single/Dual Face; Universal Mounting; Wet
by Satco Products Inc.

84
99
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 8.86"
Width: 13.00"
Finish
White
Product Overview
Running Man Green Exit Sign; 120/347V; 2HR backup; Single/Dual Face; Universal Mounting; Wet Location
Product Availability
    Purchase now and we'll ship when it's available
Technical Details
Details
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Lighting Products
Sub Category:
Exit Sign
Style:
Utility
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Non-Dimmable
Harmonized Codes:
9405.61.6000
Ship Carton Height:
13.39
Ship Carton Length:
9.06
Ship Carton Width:
3.43
Warranty:
2-Years
Amps:
0.023/0.008A
ANSI Base:
Integrated
Battery Chemistry:
Ni-Cad
CA Prop-65:
Lead
Carton Cubic Feet:
0.2408
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Non-Compliant - Only for sale in Canada
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Country Of Origin:
China
Depth:
2.5
Feature 1:
Single or Dual Face
Feature 10:
>500 Life Cycles
Feature 2:
Integrated Battery Backup
Feature 3:

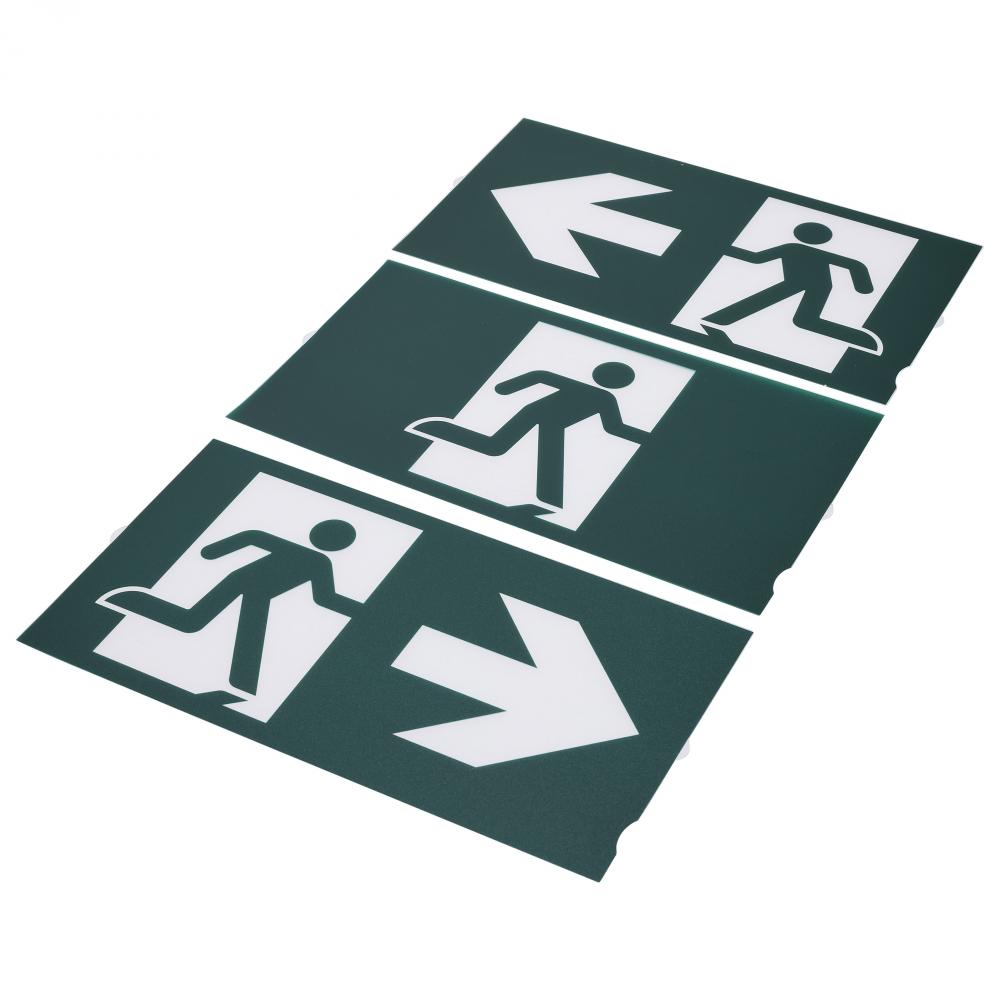

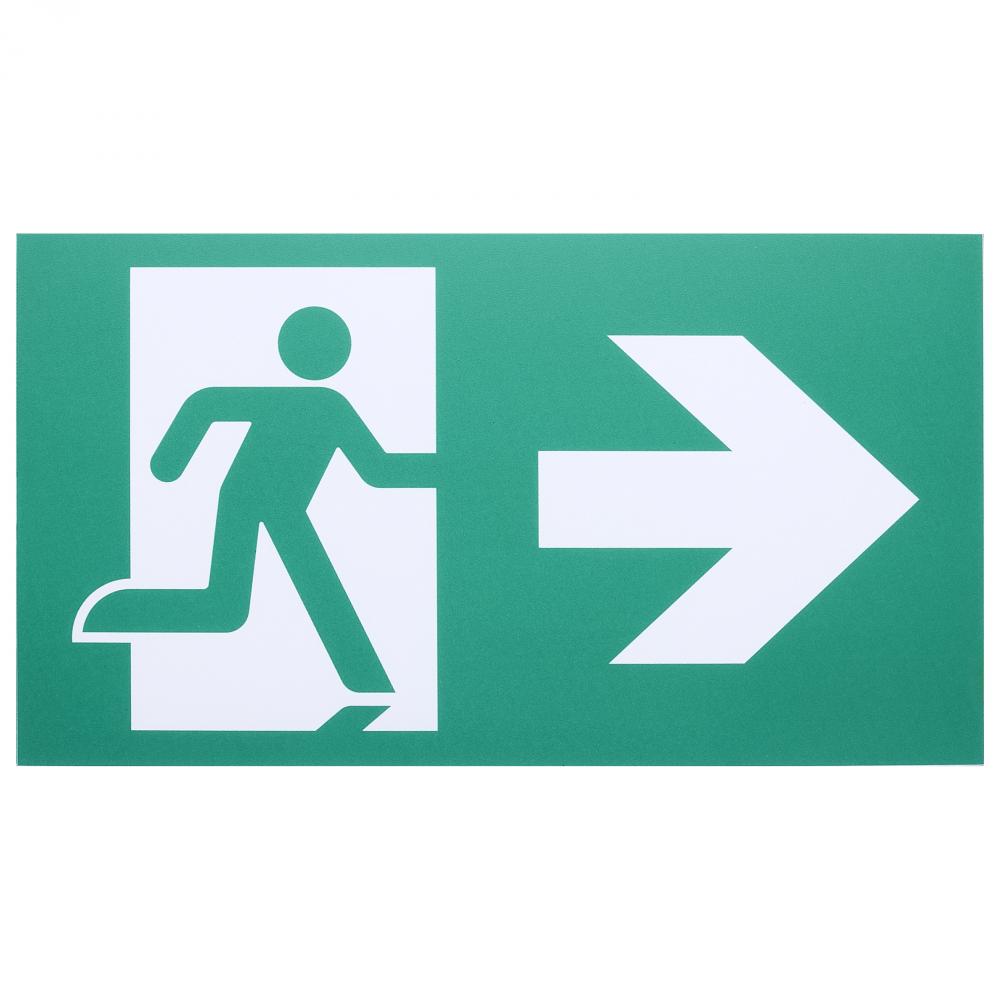

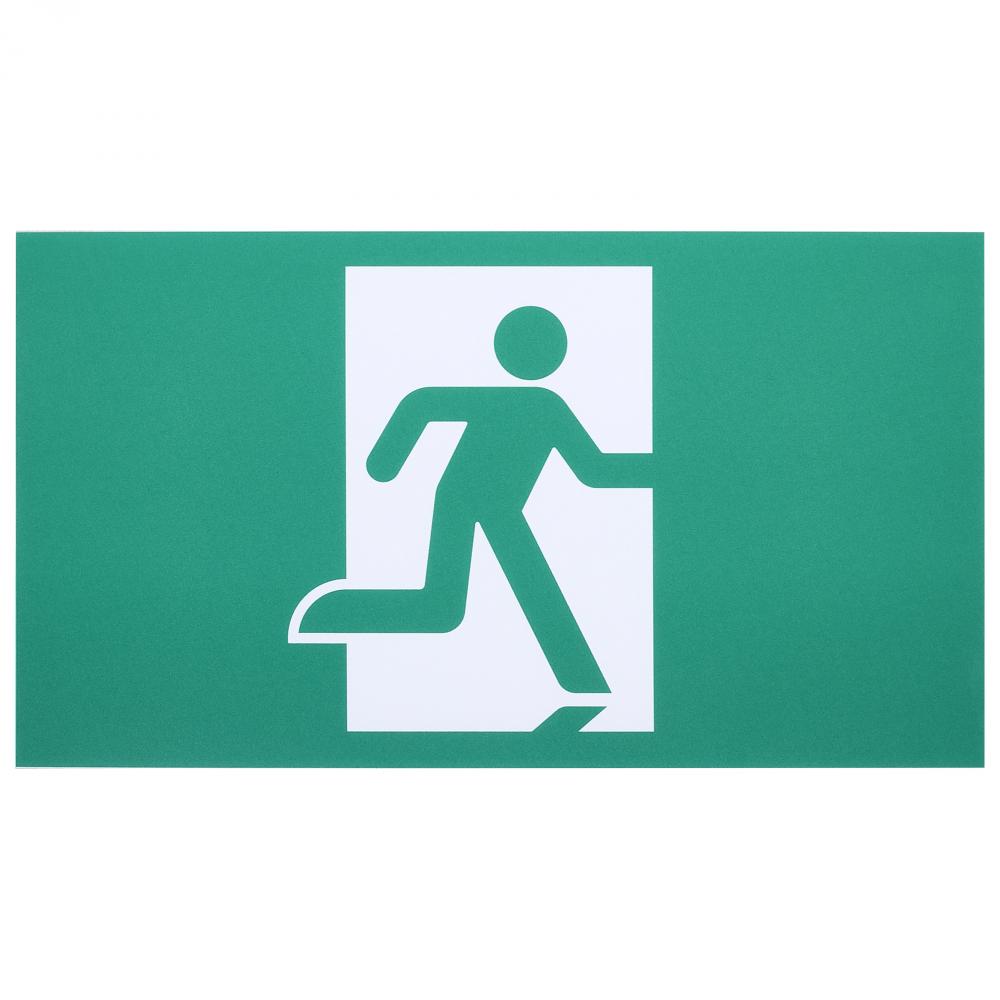

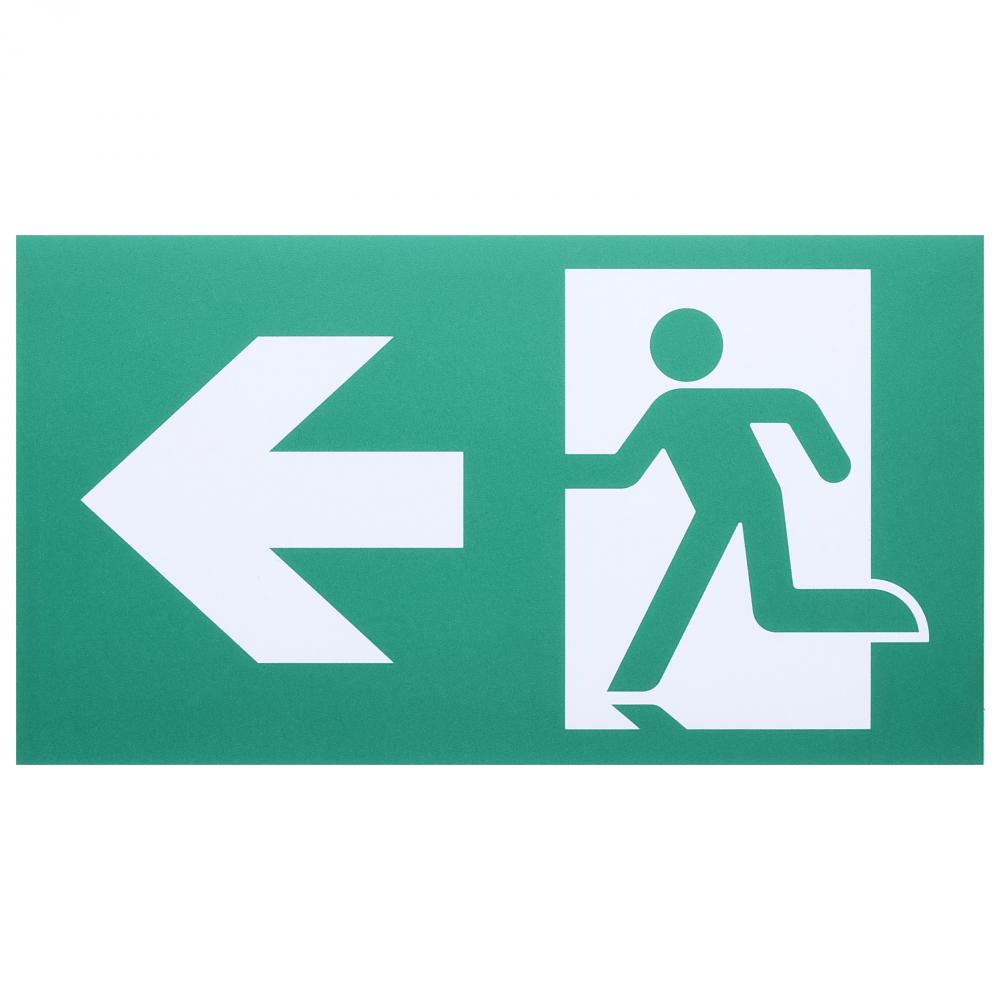

Interchangeable Pictograms
Feature 4:

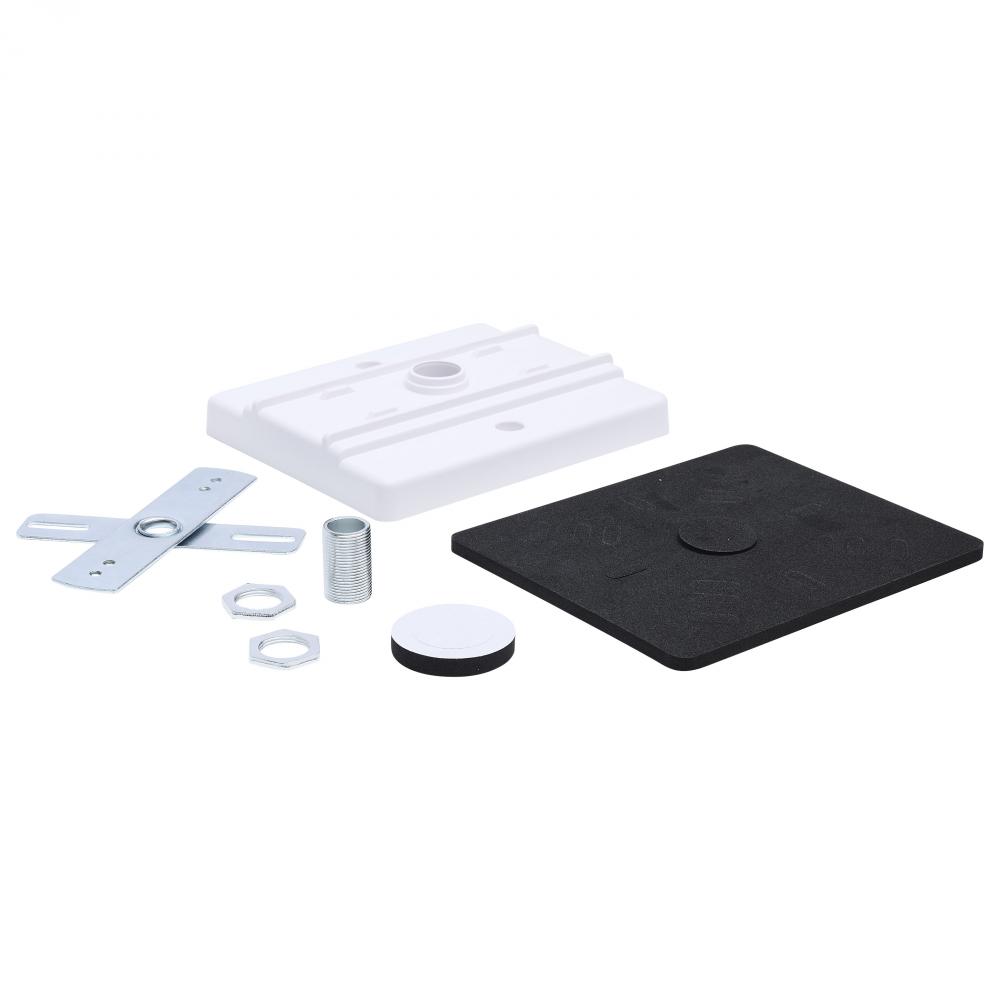

Ceiling, Wall or Side Mounting; Accessories Included
Feature 5:
Wet Location Rated
Feature 6:
120-Minute Battery Run Time
Feature 7:
Complies with ICES-005 Class B
Feature 8:
CSA, OSHA, and NFPA Compliant
Feature 9:
Push-to-Test Button
Finish Family:
White
Has Emergency Battery:
Yes
Indoor Outdoor:
Indoor and Outdoor
IP Rating:
IP65
JA8 Compliant:
No
Long Description:
Keep your building safe and secure with the SATCO NUVO 67-560 LED Running Man Signs and Emergency Light Combos. Choose single or dual-face installation and customize with the interchangeable pictograms to fit your needs. Combo models offer two adjustable l
Material:
Thermoplastic
Mounting Procedure:
Universal
Operating Frequency:
60Hz
Operating Temprature:
0C (+32F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.75
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Keep your building safe and secure with the SATCO NUVO LED Running Man Signs and Emergency Light Combos. Choose single or dual-face installation and customize with the interchangeable pictograms to fit your needs. Combo models offer two adjustable light he
Safety Listing:
CSAus
SDS class:
LED_Fixture
Short Description:
EX SIGN-CAN-WET
Sloped Ceiling Compatible:
No
Specification Notes:
Ni-Cad Battery; 120 minute discharge time; 24 Hour Recharge Time
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
35%-45%
Wattage Selectable:
No
Weight Lb.:
4.25
Manufactured By:
Satco Products Inc.
