Part Number: P5675-30/30K / Vendor ID Number: 149 / Custom:
5" LED Outdoor Up/Down Cylinder

5" LED Outdoor Up/Down Cylinder
by Progress

181
90
Pack Of: 1
297 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

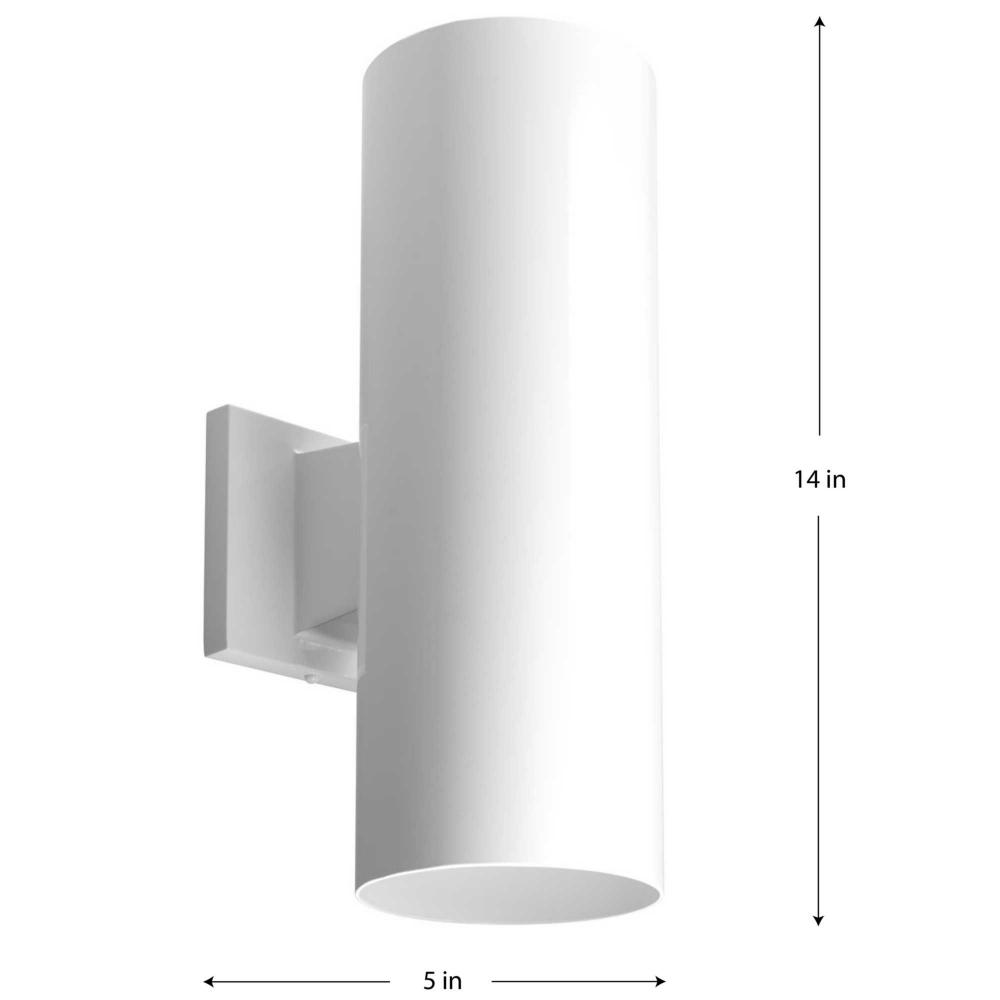

Dimensions
Height: 14.00"
Width: 8.88"
Length: 5.00"
Product Overview
5" LED up down wall cylinder - wall lantern in White. The P5675 Series are ideal for a wide variety of interior and exterior applications including residential and commercial. The Cylinders feature a 120V alternating current source and eliminates the need for a traditional LED driver. This modular approach results in an encapsulated luminaire that unites performance, cost and safety benefits. Specify P860045 top cover lens for use in wet locations.
Product Availability
    Item appears to be in stock and ready to ship
Included Items
Finish:
Lamp Wattage:
Additional options that would change other selections
Bulb Included:
Additional options that would change other selections
Lamp Type Actual:
Additional options that would change other selections
Info & Guides
Click Here to View Spec Sheet
Click Here to View Installation Sheet
Click Here to View Warranty
Technical Details
Details
Category:
Sconces
Subcategory:
Wall Lights
Outdoor Wall Lights
Finish:
White /vendors/vendorImages white.jpg
Style:
Contemporary
Transitional
Option:
Energy Efficient
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
Damp Rated
LED
Title 20
Mount Type:
Flush Mount
Location Rating:
Wet Rated
Category:
Outdoor
Finish:
White
Style:
Modern;Transitional
Option:
Damp Rated
Energy Efficient
Title 20
Title 24
Family:
Cylinder
Voltage:
120
Number of Bulbs:
2 Bulbs

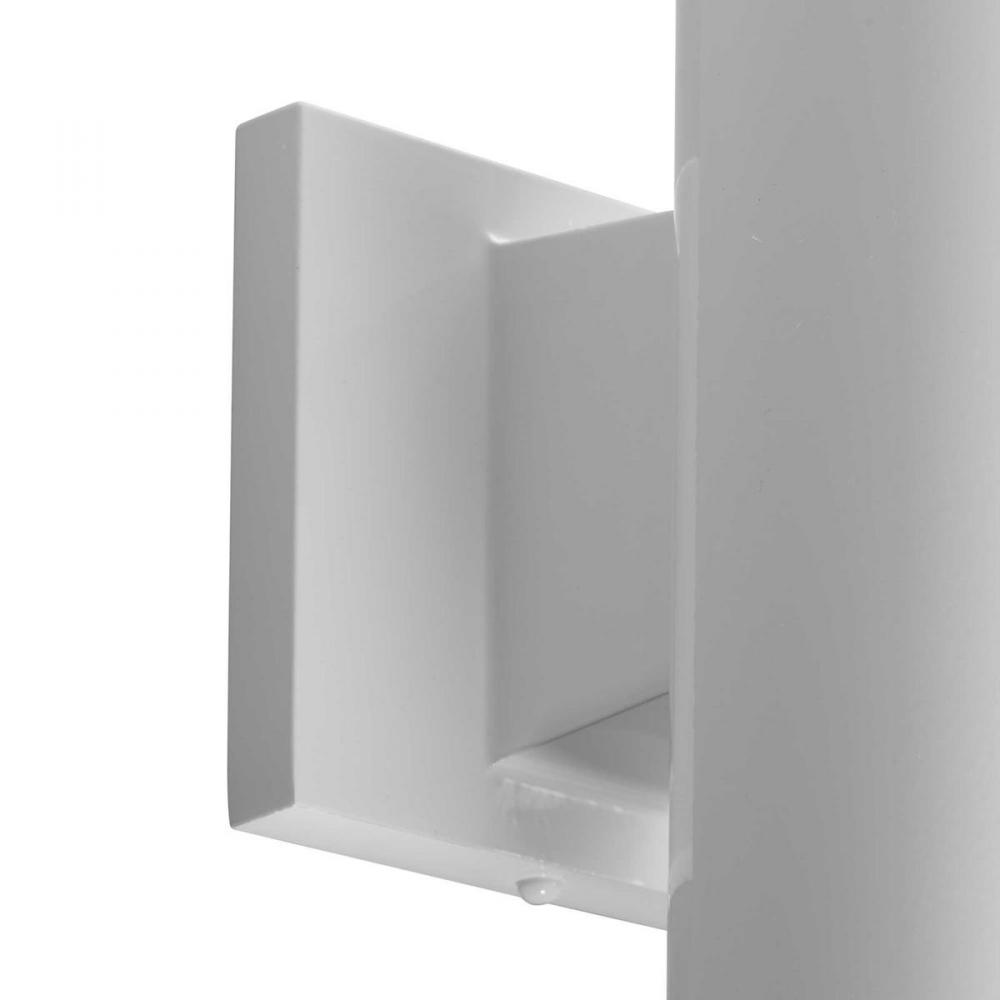

Backplate Height:
4.50
Backplate Width:
4.50
Bulb Hours:
60000
Bulb Type:
Module
Depth:
8.88
Height To Center of Outlet:
8.00
Introduction Date:
01/01/2015
Kelvin:
3000
Keyword(s):
lantern;exterior light;outdoor light
Length:
5.00
Lumens / Light Output:
2000
Material:
Die Cast and Extruded Aluminum
Ship Carton Height:
12.62
Ship Carton Length:
9.00
Ship Carton Width:
6.25
Ship Weight:
4.81
Special Features:
White finish.;Powder coat finish.;Die-cast aluminum construction with durable powder coated finish;2,000 lumens 48 lumens/watt per module (delivered);3000K color temperature, 90+ CRI;Meets California Title 24 high efficacy requirements for outdoor use only
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
2.80
Wire Included:
6 in
Americans with Disabilities Act:
No
Backplate Depth:
2.95
Bulb Base:
Module
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Canopy Shape:
Square
Certified Listed Location:
Damp Location Listed
Construction Material Main Part:
Construction
Country of Origin:
CN
Dark Sky:
No
Design Series:
No
Dimming Compatability:
Lutron_Diva DVELV-300P;Lutron_Nova NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600;Leviton_Renoir II AWRMG-EAW;Leviton_6615-P
Dimming Protocol:
ELV/Reverse Phase
Dimming Range:
10%
Energy Efficient:
Yes
Energy Star:
No
Finish Type:
Powder Coat Paint
Frequency Rating:
60 Hz
Grounded Convenience Outlet included:
No
JA8:
No
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
16
Lumens per Watt:
48.00
Mount Location:
Wall
MTO:
No
Operating Temperature Celcius Max:
30 °C
Prop 65:
View
Prop 65 Description:
View
Room Type:
Outdoor
Safety Rating:
cCSAus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
5 in Depth
Manufactured By:
Progress
