Item Sales Info

Part Number: P5674-30/30K / Vendor ID Number: 149 / Custom:

5" White LED Outdoor Wall Cylinder
by Progress

124

Pack Of: 1

231 In Stock

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

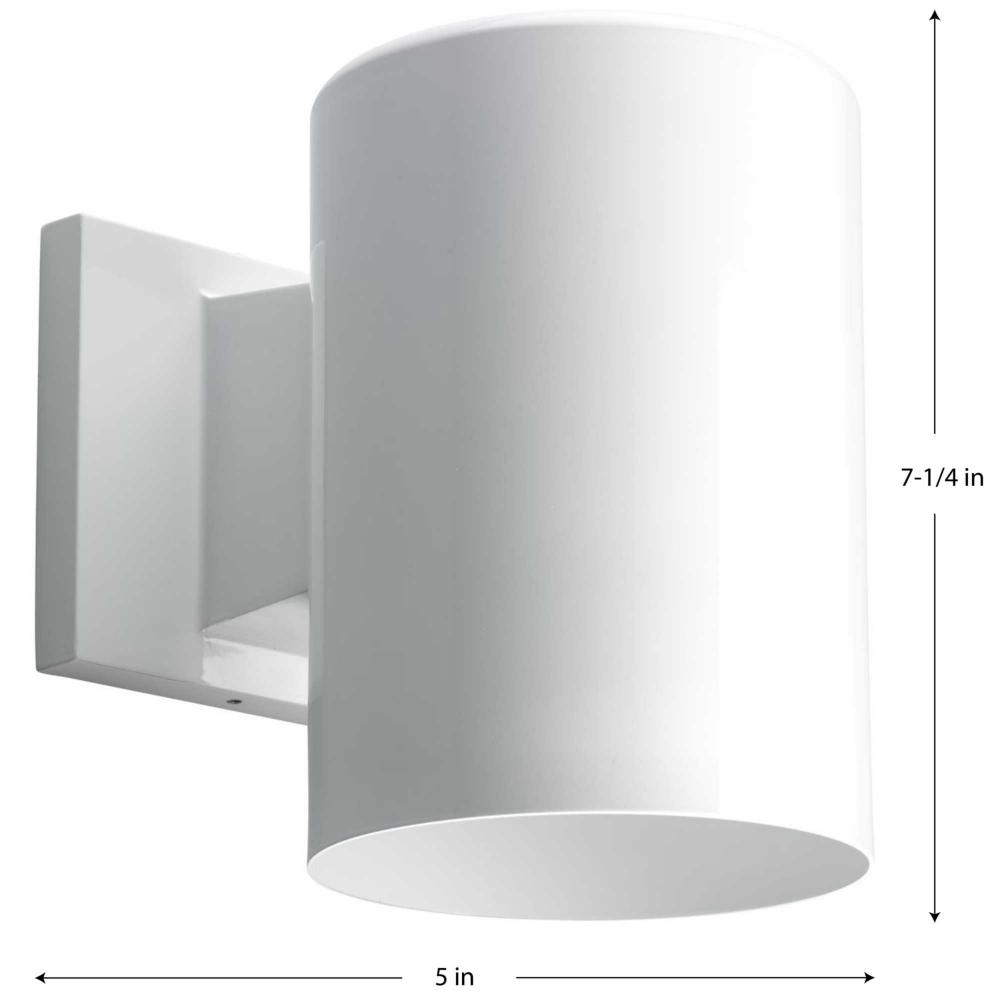

Dimensions

Height: 7.50"

Width: 8.00"

Length: 5.00"

Product Overview

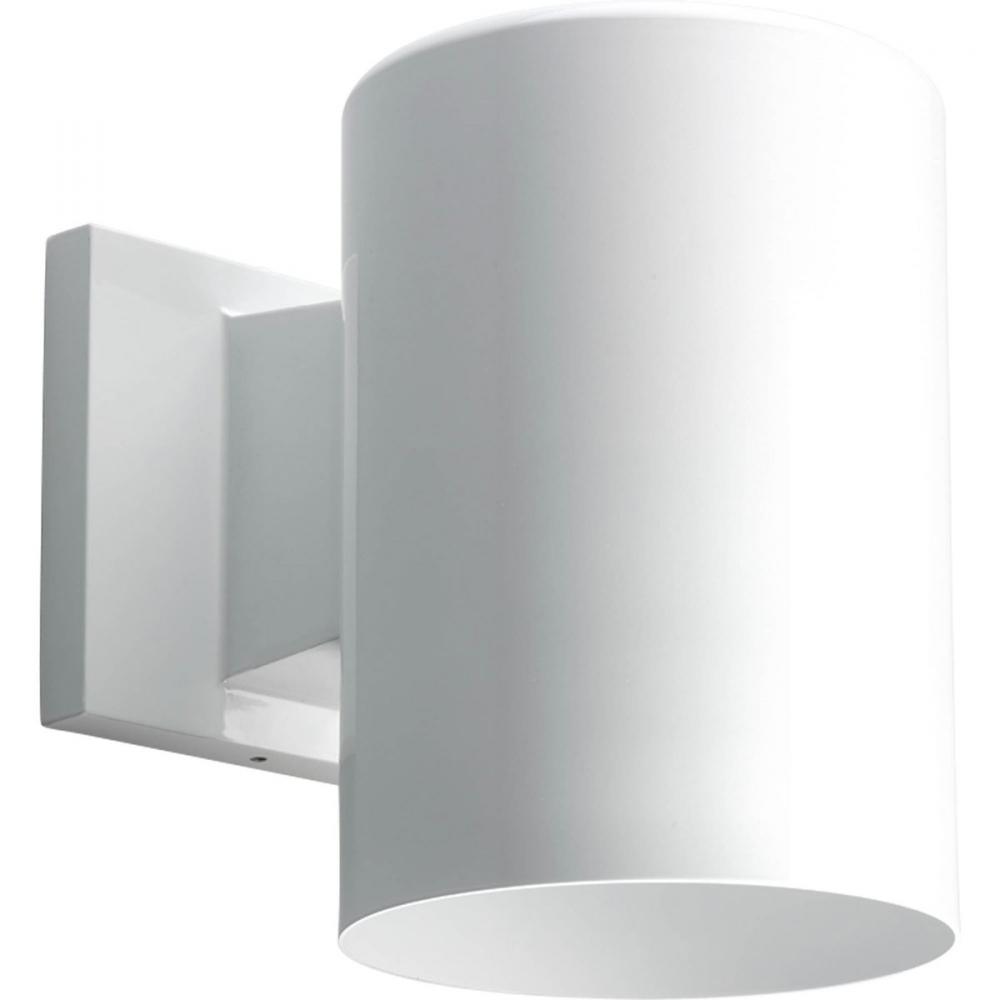

5" LED wall cylinder/wall lantern in White. The P5674 Series are ideal for a wide variety of interior and exterior applications including residential and commercial. The Cylinders feature a 120V alternating current source and eliminates the need for a traditional LED driver. This modular approach results in an encapsulated luminaire that unites performance, cost and safety benefits. With over 874 lumens the LED Cylinders unite performance, energy savings and safety benefits.

Product Availability

Item appears to be in stock and ready to ship

Included Items

Finish:

Lamp Wattage:

Additional options that would change other selections

Lumens / Light Output:

Additional options that would change other selections

Lumens per Watt:

Additional options that would change other selections

Info & Guides

Click Here to View Spec Sheet

Click Here to View Installation Sheet

Click Here to View Warranty

Technical Details

Details

Category:

Exterior

Subcategory:

Wall Lanterns

Finish:

White /vendors/vendorImages white.jpg

Style:

Contemporary

Transitional

Option:

Dark Sky

Energy Efficient

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Outdoor

Wet Rated

LED

Title 20

Mount Type:

Flush Mount

Location Rating:

Wet Rated

Category:

Outdoor

Finish:

White

Style:

Modern;Transitional

Option:

Dark Sky

Energy Efficient

Title 20

Title 24

Wet Rated

Family:

Cylinder

Voltage:

120

Number of Bulbs:

1 Bulbs

Backplate Width:

4.50

Bulb Hours:

60000

Bulb Type:

Module

Depth:

8.00

Height To Center of Outlet:

2.50

Introduction Date:

01/01/2015

Kelvin:

3000

Keyword(s):

lantern;exterior light;outdoor light

Length:

5.00

Lumens / Light Output:

874

Material:

Die Cast and Extruded Aluminum

Ship Carton Height:

8.25

Ship Carton Length:

8.87

Ship Carton Width:

6.62

Ship Weight:

2.58

Special Features:

White finish.;Die-cast aluminum construction with durable powder coated finish;874 lumens 42 lumens/watt (delivered);3000K color temperature, 90+ CRI;Meets California Title 24 high efficacy requirements for outdoor use only.;Dimmable to 10% with many ELV d

Vendor Ship Method:

Non UPS Shippable False

Warranty:

5-year Limited

Weight:

2.20

Wire Included:

6 in

Americans with Disabilities Act:

Bulb Base:

Module

Bulb CRI:

90 CRI

Bulb Included:

Yes

Can be Mounted Up or Down:

Canopy Shape:

Square

Certified Listed Location:

Wet Location Listed

Construction Material Main Part:

Construction

Country of Origin:

Dark Sky:

Yes, per photometry (not registered with IDA)

Design Series:

Dimming Compatability:

Lutron_Diva DVELV-300P;Lutron_Nova NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600;Leviton_Renoir II AWRMG-EAW;Leviton_6615-P

Dimming Protocol:

ELV/Reverse Phase

Dimming Range:

10%

Energy Efficient:

Yes

Energy Star:

Finish Type:

Powder Coat Paint

Frequency Rating:

60 Hz

Grounded Convenience Outlet included:

JA8:

Lamp Type Actual:

LED

Lamp Type Basic:

Solid State

Lamp Wattage:

16.4

Lumens per Watt:

42.00

Mount Location:

Wall

MTO:

Operating Temperature Celcius Max:

30 °C

Post Top Fits Standard:

Prop 65:

View

Prop 65 Description:

View

Room Type:

Outdoor

Safety Rating:

cCSAus

Starting Temperature Minimum:

-30 °C

Sub Brand:

Progress LED

Title 20:

Yes

Title 24:

Yes

Weight of Fixture Exceeds NEC Limits:

Width Diameter:

5 in Depth

Manufactured By:

Progress

5" White LED Outdoor Wall Cylinder by Progress

5" White LED Outdoor Wall Cylinder
by Progress
